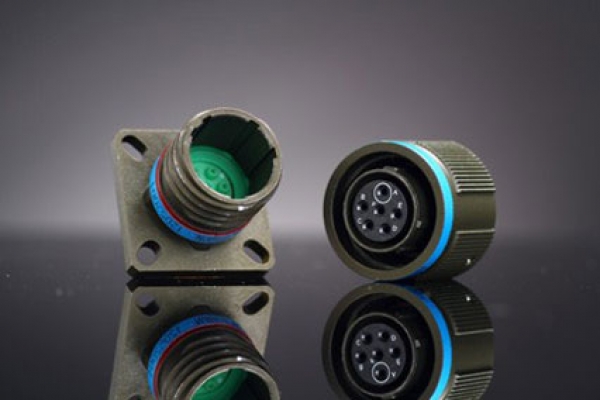

GJB599Ⅲ series

Product Introduction

* In conformity with GJB599A(MIL-DTL-38999K)Ⅲseries;

* Triple thread quick connection, with a locking mechanism;
* Small volume, low weight, and high-density of contact couples;
* The function of electromagnetic shielding is provided;
* Contact elements are crimped and detachable, with an scoop-proof design;
* With fireproof shells, composite material and aluminum alloy shells, and multiple coatings;
* Capable of resisting a high-intensity vibration under high temperature, and adapting to severe wind sand and damp conditions;

Main Technical Parameters



 The Main Technical Characteristics



【Mechanical Properties】

- Shell: aluminum alloy, and stainless steel

-- Coating: W typeArmy-green cadmium plating    K type Stainless steel passivation

                F type  Chemical Nickel-plating

-- Insulator: thermosetting material

-- Grommet and sealing ring: silicone rubber material

-- Contact elements: Gold-plating of copper alloy,

crimp-type, welded-type, and printed board type;

- Durability: 500 times、

-- Vibration: Sine: 60g, with temperature cycling and analog accessories (36 hours);

                Random: 44.1grms under high temperature, and 49.5grms at ambient temperature;

-- Shock: 3ms half-sine wave, acceleration peak value300g

-- Retention Force of Contact Elements: (the minimum force computed in Newton)

               22D#: 45N      20#: 67N

               16# : 111N     12#: 111N

               10# : 111N      8#: 111N
