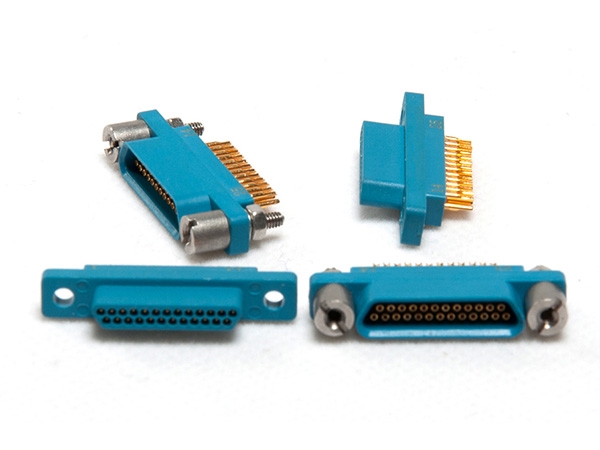

J30 series

*     The product properties conform to the requirements of GJB2446.

*     The product uses plastic shell.

*     Number of cores: there are seven specifications: 9-core, 15-core, 21-core, 25-core, 31-core, 37-core and 51-core.

*     The male contacts are flexible pins (twist pins) and the female contacts are rigid sockets; the contact spacing is 1.27 mm.

*     The sectional area of the wire core is 0.1-0.15 mm2. In addition, 0.07mm2 wire may also be used, but the product model will be special.

*     There is a changed tail suitable for the hole spacing of the PCB.

*     The locking components of this series product are separately purchased in accordance with the ordering request. If you want the locking components assembled with the product for supply, please specify it in the contract.

ment--> Executive standard: Q/HLJ2.1.2.11-2009 Detail Specification for J30J Series Microminiature Rectangular Electrical Connector.
