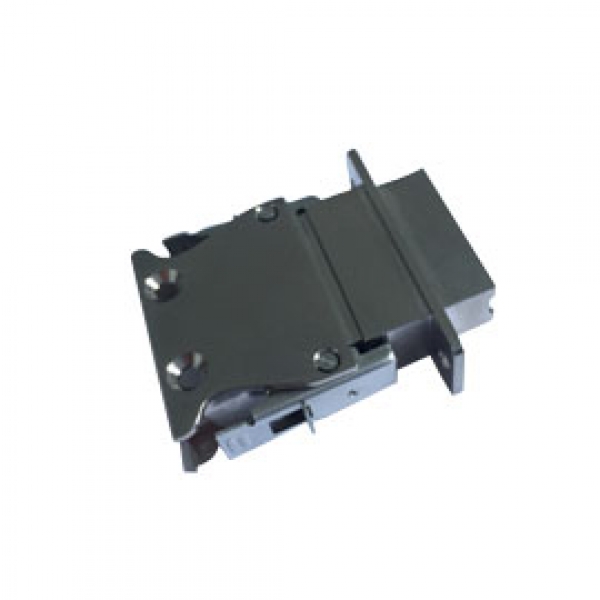

J24H series

Number of cores: there are ten specifications: 9-core, 15-core, 19-core, 25-core, 26-core, 37-core, 38-core, 51-core, 52-core and 74-core.

*This series product uses twist pins with reliable contact.

*The back of the contact is crimping product, and the sectional area of the crimping wire ranges from 0.12 mm2 to 0.2 mm2.

*This product uses the metal shielding shell with the cable clamp and the quick locking unit.

*This product conforms to the general specification GJB2446-1995.

Main Technical Parameters

Main Technical Properties



【Mechanical properties】

--Durability: 1000 times

--Shock: 980 m/s2

--Vibration: 10-2000Hz, 196 m/s2

--Random vibrating: power spectrum density : 0.4 G2/Hz

RMS of total acceleration: 23.1 G



【Environmental properties】

--Ambient temperature: -55℃ to +125℃

--Relative humidity: 98% at +40℃

--Low barometric pressure: 4 kPa



【Electrical properties】

--Contact resistance: ≤10mΩ

--Insulation resistance: ≥1,000MΩ

--Dielectric withstanding voltage: 1000V

--Rated current: 3A
