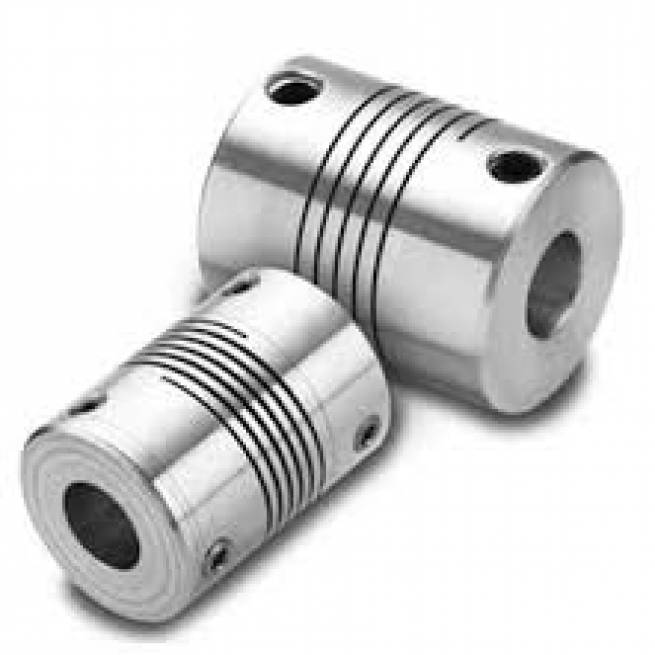

BKH - METAL BELLOWS COUPLING WITH SPLIT HUB

  • Design:
    • Both clamping hubs are completely separable, due to split hubs and two radial screws ISO 4762 on each hub.
    • Any imbalance of the clamping hubs is compensated for by balancing bores located on the inside of the hub.
  • Temperature range: -30° C to +100° C (-22° F to +212° F)
  • Backlash: Absolutely backlash-free due to frictional clamp connection.
  • Service life: These couplings are maintenance-free if the technical ratings are not exceeded.
  • Tolerance: On the hub/shaft connection 0.01 to 0.05 mm
  • Material:
    • Bellows made of highly flexible high-grade
stainless steel.
    • Hub material see table
  • Brief overloads: Acceptable up to 1.5 times the value specified.
  • Speeds: Up to 10,000 rpm, in excess of 10,000 available with a finely balanced version.
  • Non-standard application: Custom designs with varied tolerances, keyways, non-standard material, bellows and ATEX designs are available upon request.
  • Properties of Bellows Coupling model BKH:
    • easy to mount
    • suited for space restricted installations
    • low moment of inertia
    • fine balanced up to 40,000 RPM
